Spring Boot / Oracle / Mybatis 차례

pom.xml

Oracle 연동을 위해 필요한 라이브러리를 추가합니다.

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.8.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.gaeyou</groupId>
	<artifactId>firstProject</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>firstProject</name>
	<description>Demo project for Spring Boot</description>

	<!-- OJDBC 드라이버 레포지토리 -->
	<repositories>
	    <repository>
	        <id>oracle</id>
	        <url>http://maven.jahia.org/maven2</url>
	    </repository>
	</repositories>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>

		<!-- lombok -->
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
			<version>1.18.8</version>
			<scope>provided</scope>
		</dependency>

		<!-- Spring boot JDBC Library -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-jdbc</artifactId>
		</dependency>

		<!-- Connection pool Library -->
		<dependency>
		    <groupId>commons-dbcp</groupId>
		    <artifactId>commons-dbcp</artifactId>
		    <version>1.4</version>
		</dependency>

		<!-- Oracle JDBC Driver -->
		<dependency>
		    <groupId>com.oracle</groupId>
		    <artifactId>ojdbc6</artifactId>
		    <version>12.1.0.2</version>
		</dependency>

		<!-- MyBatis Library -->
		<dependency>
		    <groupId>org.mybatis</groupId>
		    <artifactId>mybatis</artifactId>
		    <version>3.4.1</version>
		</dependency>

		<!-- Spring MyBatis 연동 -->
		<dependency>
		    <groupId>org.mybatis</groupId>
		    <artifactId>mybatis-spring</artifactId>
		    <version>1.3.0</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-configuration-processor</artifactId>
			<optional>true</optional>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
			<plugin>
			    <groupId>org.apache.maven.plugins</groupId>
			    <artifactId>maven-surefire-plugin</artifactId>
			    <version>2.22.1</version>
			    <configuration>
			        <testFailureIgnore>true</testFailureIgnore>
			    </configuration>
			</plugin>
		</plugins>
	</build>

	<packaging>war</packaging>
</project>

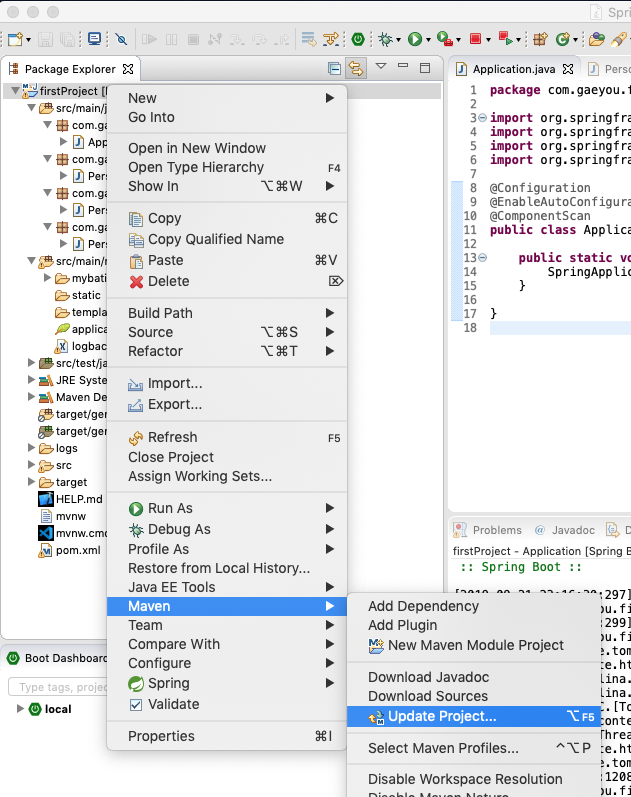

Maven > Update Project

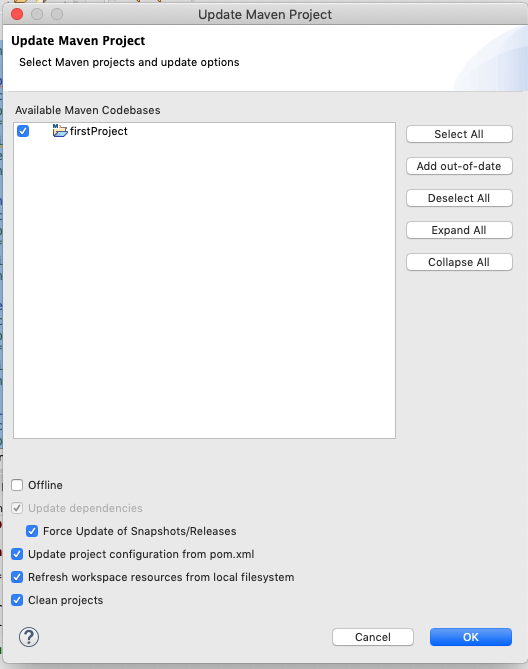

Force Update of Snapshots를 체크하고 Maven을 업데이트 합니다.



application.properties

# Database
spring.datasource.driver-class-name=oracle.jdbc.OracleDriver
spring.datasource.url=jdbc:oracle:thin:@localhost:1521/xe
spring.datasource.username=dev_user
spring.datasource.password=1234

# server.port=80
# server.error.whitelabel.enabled=false

#### jsp 사용할 경우
# spring.mvc.view.prefix=/WEB-INF/views/
# spring.mvc.view.suffix=.jsp
# server.jsp-servlet.init-parameters.development=true

#### thymeleaf 사용할 경우
# spring.thymeleaf.cache=false

Oracle DB 접속 정보를 입력합니다.



PersonModel.java

com/gaeyou/firstproject/model/PersonModel.java

model은 Oracle에서 받아오는 컬럼과 동일한 데이터를 선언합니다.

package com.gaeyou.firstproject.model;

import lombok.Data;

@Data
public class PersonModel {
	private int idx;
	private String name;
	private String email;
	private String passwd;
	private String content;
}

PersonDao.java

com/gaeyou/firstproject/dao/PersonDao.java

dao는 spring과 mapper를 연결해줍니다.

package com.gaeyou.firstproject.dao;

import com.gaeyou.firstproject.model.PersonModel;

public interface PersonDao {

	PersonModel getPerson();

}

DataSourceConfig.java

com/gaeyou/firstproject/config/DataSourceConfig.java

application.properties에 선언되어 있는 spring.datasource.* 의 값으로 DataSource를 build 합니다.

package com.gaeyou.firstproject.config;

import javax.sql.DataSource;

import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.boot.jdbc.DataSourceBuilder;
import org.springframework.context.annotation.Configuration;

@Configuration
public class DataSourceConfig {

	@ConfigurationProperties(prefix="spring.datasource")
	public DataSource dataSource() {
		return DataSourceBuilder.create().build();
	}
}

DataAccessConfig.java

com/gaeyou/firstproject/config/DataAccessConfig.java

myBatis로 SqlSessionFactoryBean을 생성합니다.

package com.gaeyou.firstproject.config;

import javax.sql.DataSource;

import org.apache.ibatis.session.SqlSessionFactory;
import org.mybatis.spring.SqlSessionFactoryBean;
import org.mybatis.spring.SqlSessionTemplate;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.support.PathMatchingResourcePatternResolver;

@Configuration
@MapperScan(basePackages = "com.gaeyou.firstproject.dao")
public class DataAccessConfig {

	@Bean
	public SqlSessionFactory sqlSessionFactory(DataSource dataSource) throws Exception {

		SqlSessionFactoryBean sessionFactory = new SqlSessionFactoryBean();

		sessionFactory.setDataSource(dataSource);
		sessionFactory.setMapperLocations(
				new PathMatchingResourcePatternResolver().getResources("classpath:mybatis/mapper/*.xml")
		);
		return sessionFactory.getObject();
	}

	public SqlSessionTemplate sqlSessionTemplate(SqlSessionFactory sqlSessionFactory) {
		return new SqlSessionTemplate(sqlSessionFactory);
	}

}

classpath:mybatis/mapper/*.xml

위 경로는 mapper xml 경로입니다.

main.xml

src/main/resources/mybatis/mapper/main.xml

query를 정의합니다.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.gaeyou.firstproject.dao.PersonDao">

	<select id="getPerson" resultType="com.gaeyou.firstproject.model.PersonModel">
		SELECT
		       IDX
		     , NAME
		     , EMAIL
		     , PASSWD
		     , CONTENT
		  FROM BOARD
		 ORDER BY IDX DESC
	</select>

 </mapper>

PersonService.java

com/gaeyou/firstproject/service/PersonService.java

service interface를 정의합니다.

package com.gaeyou.firstproject.service;

import com.gaeyou.firstproject.model.PersonModel;

public interface PersonService {

	PersonModel getPerson();

}

PersonServiceImpl.java

com/gaeyou/firstproject/service/imp/PersonServiceImpl.java

service 구현체입니다.

package com.gaeyou.firstproject.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.gaeyou.firstproject.dao.PersonDao;
import com.gaeyou.firstproject.model.PersonModel;
import com.gaeyou.firstproject.service.PersonService;

@Service
public class PersonServiceImpl implements PersonService {

	@Autowired
	private PersonDao personDao;

	@Override
	public PersonModel getPerson() {
		PersonModel person = personDao.getPerson();
		return person;
	}

}

PersonController.java

com/gaeyou/firstproject/controller/PersonController.java

view와 model을 연결하는 route를 구현합니다.

package com.gaeyou.firstproject.controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import com.gaeyou.firstproject.model.PersonModel;
import com.gaeyou.firstproject.service.PersonService;

@CrossOrigin
@RestController
@RequestMapping("/persons")
public class PersonController {

	@Autowired
	PersonService personService;

	@RequestMapping("/all")
	public PersonModel getAll() {
		return personService.getPerson();
	}

}

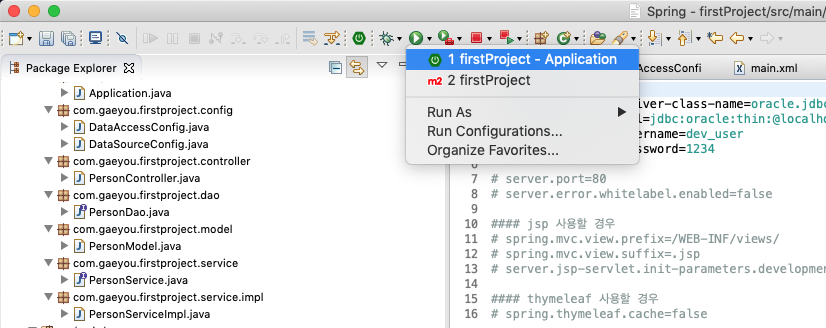

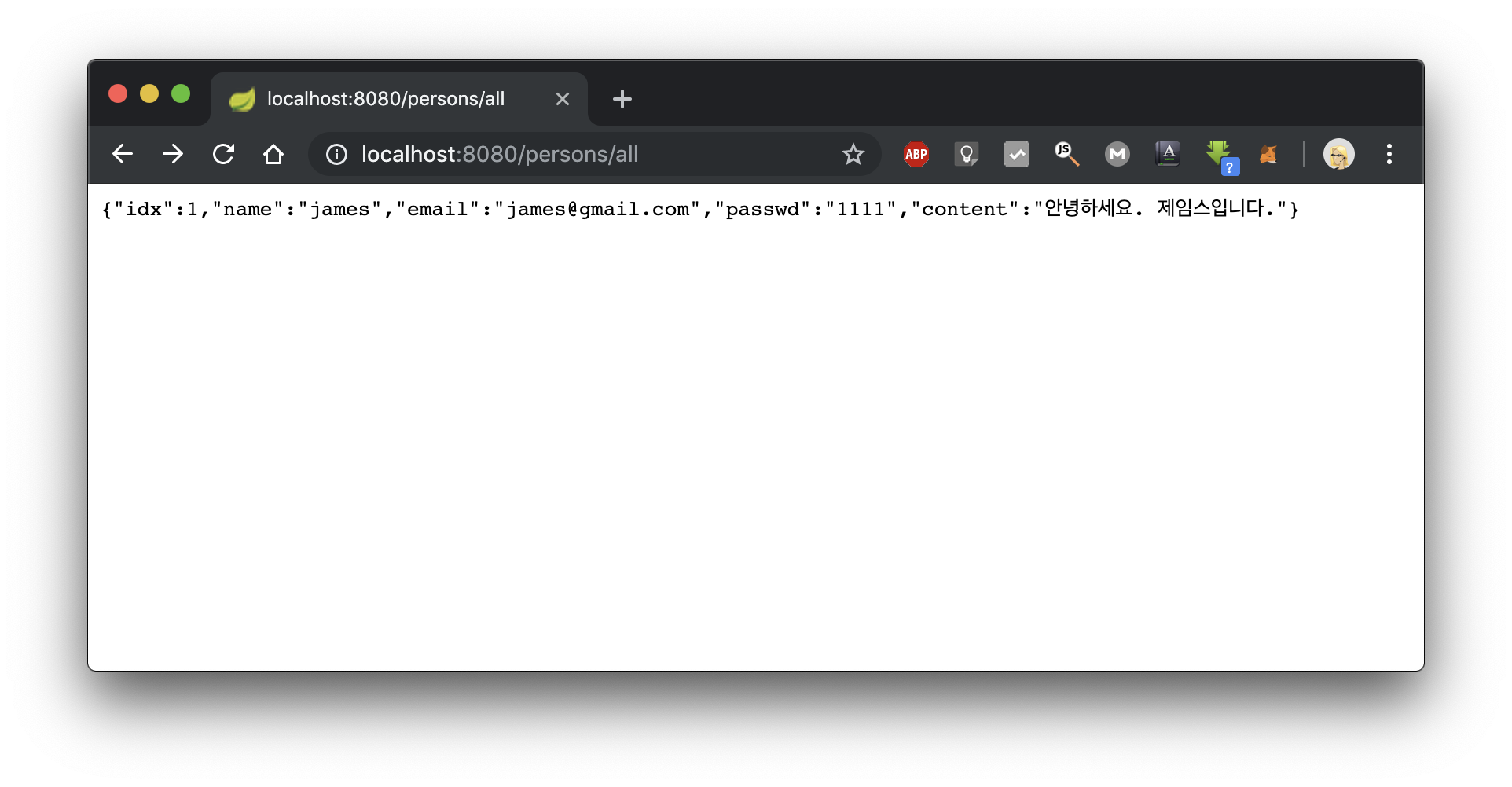

서버구동





길고 길었던 Spring boot 프로젝트의 한 사이클이 완전히 끝났습니다.

Oracle에서 데이터를 가지고 오는것만 해봤는데

데이터 넣고 수정하는 응용편은 별도로 다루지 않겠습니다.

빠이~

(댓글도 좀 ㅋㅋ)





Spring Boot / Oracle / Mybatis 차례
